Product Overview

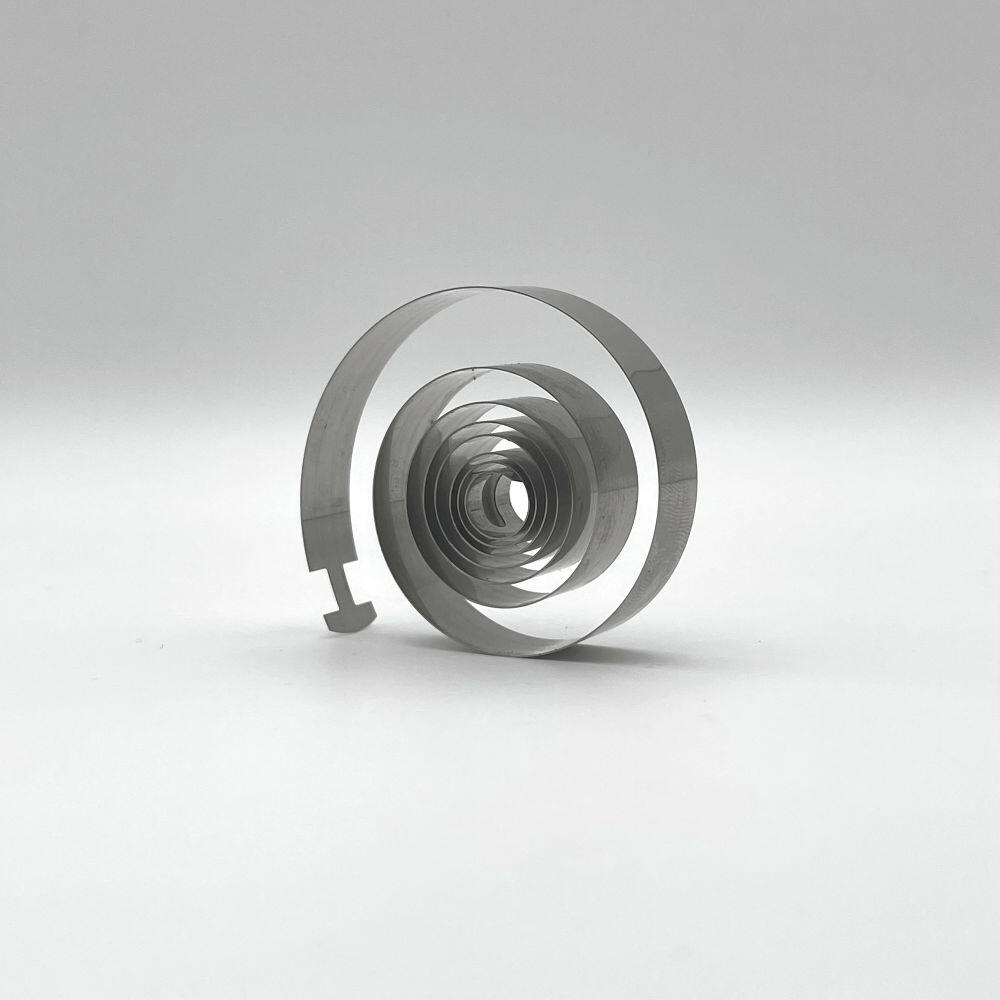

Power Spring PS-002 is an open-band type power spring with a slightly wider coil configuration compared to PS-001, providing an increased total energy storage capacity while maintaining the same gentle, progressive torque release curve. The steel strip is wound around a central arbor starting from a naturally relaxed state. The design allows simple installation and is well-suited for mechanisms requiring moderate stroke lengths with consistent return force, such as seat-belt pre-tensioners, toy motors, and cable retractor assemblies.
Technical Specifications
| Model | PS-002 |
| Type | Open-band (without housing) |
| Material | SUS301 stainless steel, SAE1080, SK5, precision steel strips (customisable) |
| Thickness (T) | 0.04 – 1.0 mm |
| Width (W) | 2.5 – 90 mm |
| Shaft Diameter (Da) | Customisable per application |
| Number of Coils (N) | Customisable per application |
| Feature | Moderate energy storage; gentle torque curve; easy assembly |
Applications
Toys & spring motors
Seat belt pre-tensioners
Cable retractors
Timer mechanisms
Cord reels
Fitness equipment
